Modine HDC Separated Combustion

Description

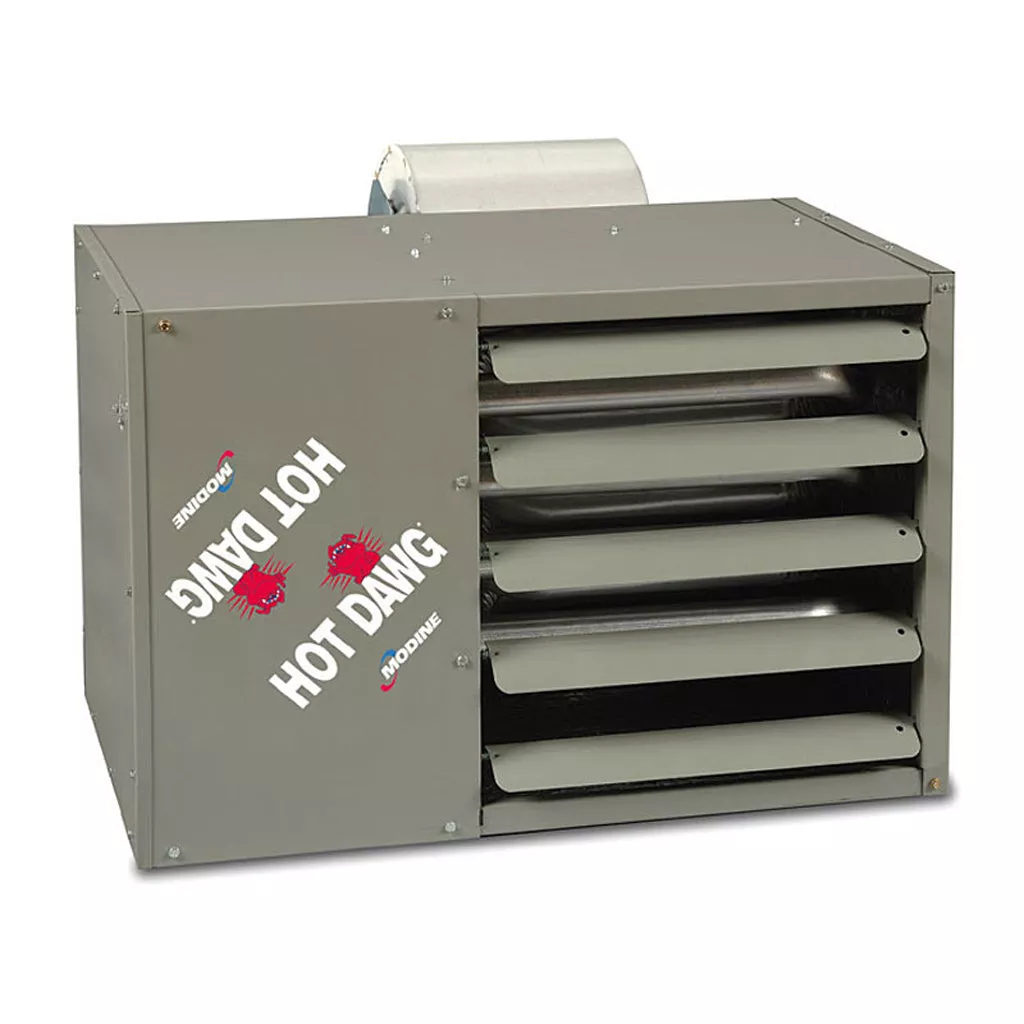

Modine’s HDC series features a blower type fan for increased air flow performance over traditional propeller units in a separated combustion configuration. The higher CFM ratings of these units make them a perfect solution for warehouses, large garages or workshops where heat needs to be thrown a long distance while drawing combustion air from the outside for dusty or humid applications.Standard Features

Less maintenance in dusty environments.Improved efficiency by using outside air for combustion.Greater durability in “hostile” environments (environments possessing substances that may deteriorate the performance of the unit).External thermostat and gas connections.Hush-puppy quiet operation.Uses natural or propane gas.Certified for residential, commercial and industrial use.Low-profile design and neutral color to blend in with decor.Lightweight, easily installs 1″ from ceiling with only 2 angle brackets (included).Install quickly and easily with field wiring connections and knockouts for quick access to gas and electricity.Standard power exhaust simplifies side-wall or roof venting with small-diameter vent pipe.Versatile design allows for right or left hand controls and installation. Gas, electrical and flue connections can be changed from one side to the other by simply flipping the Hot Dawg over.Permanently-lubricated motor for trouble-free dependability.Full 10-year warranty on heat exchanger.

Advantages

100% Outside Air for CombustionSealed Compartment Protects Combination Gas ControlIgnition ControlManifold and BurnerHorizontal or Vertical Concentric Venting80% Thermal EfficiencyField Convertible to Propane100% Shut-Off with Continuous Retry

Dimensions and DiagramsDimensions, Diagrams, and Specifications (Page 4 shows HDC model.)Modine Greenhouse Heating Solutions (PDF)Wiring Diagrams (PDF)Performance Specifications

Item NO.InputOutput BTUHVent SizeMotor HPAirflow CFM RangeAir Temp Rise Range

HDC6060,00048,0004″1/4635 – 110040-70

HDC7575,00060,0004″1/3795 – 139040-70

HDC100100,00080,0004″1/21060 – 185040-70

HDC125125,000100,0004″1/21240 – 205045-75

*Do not locate any gas-fired unit in areas with chlorinated, halogenated or acidic vapors in atmosphere.

Installation

Many of our customers happily report that purchasing a Hot Dawg heater from the Greenhouse Megastore helped them save 50% or more off the unit price received from a local HVAC installer. However, for safety reasons and to minimize installation problems Modine strongly recommends having a licensed HVAC technician install your Hot Dawg heater. Although we are happy to offer limited technical support for your Hot Dawg purchase, we can NOT install the heater for you over the phone nor are we able to troubleshoot problems you may experience if you choose to install the heater yourself. By purchasing this heater from us, you accept sole responsibility for installation and agree to abide by Modine’s limited Warranty.

Comparison ChartModine HD-Series vs. Sterling RF-Series

SpecificationModine HD-SeriesSterling RF-SeriesComments

BTU Range30 – 125 MBH30 – 90 MBHModine covers more applications

Minimum Efficiency80%80%Same non-condensing high efficiency

Blower Fan Units(HDB model only)60 – 125 MBHNot AvailableModine covers more applications

Casing PaintPolyester PowderWet EnamelModine units will look better longer

Quiet Swept Wing Fans100 and 125 MBHNot AvailableLarger Modine units are quieter

Heat Exchanger Gauge18 Gauge20 GaugeModine heat exchangers are heavier gauge

Optional Stainless SteelYesNot AvailableModine covers more applications for corrosive environments

T.E. Fan Motor StandardYesNoModine motors are protected for longer life

Power Vented X-Changer Warranty (HDS and HDC models only)10 Years10 YearsSame 10 year heat exchanger warranty

Sep. Comb. X Changer Warranty(HDS u0026amp; HDC models only10 Years5 YearsModine separated combustion units warrantied longer

Component Warranty2 Years1 YearModine parts warrantied longer

Additional InformationManualResidential Owners Manual (PDF)WarrantyModine offers a 10 year limited warranty on the heat exchanger and a 2 year limited warranty on all other components. Please note this warranty covers parts only and does not cover any labor costs associated with repairing the heater. View Warranty (PDF)
